HS ARCHI-LINE | Outdoor roll screens

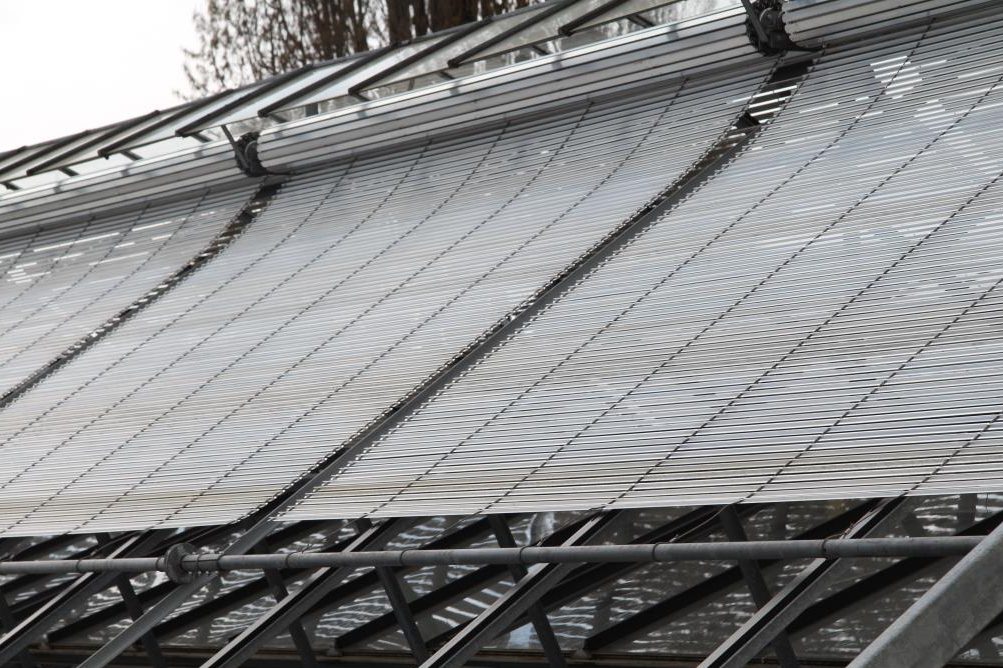

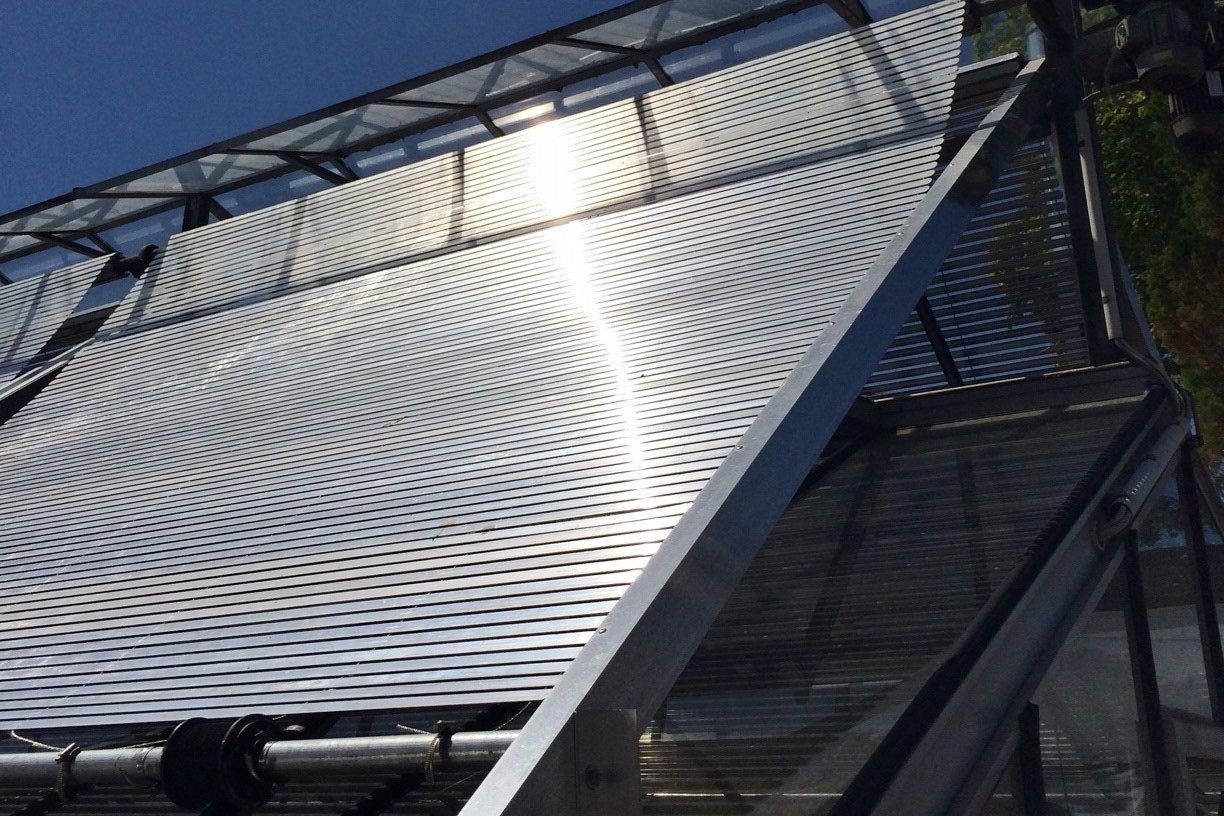

The HS archi-line is an extremely durable outdoor shading solution. This construction of aluminium slats and stainless steel rope has been tested for many years. This system is mostly installed on the roofs of botancial gardens and research institutes.
The system stands for uncompromising durability. Our highly automated production guarantees consistent quality, elimination of error sources as well as a fast and efficient production process.
Only 1 mm thickness of the slat is sufficient, as a 6 mm bridge at the back holds the steel rope and acts as reinforcement, invisible from below. The aluminium slats do not have any supporting function. All edges are trimmed round to reduce the risk of injuries during installation and operation.
ANY SHADING LEVEL POSSIBLE
As production is done in-house, the slat distances can be adjusted according to customer requirements and therefore the shading can be perfectly adjusted to every need. Even different distances in a single module are possible for variable shading levels.
Please note: Every HS archi-line module is exactly produced according to customer requirements – changes after start of production usually mean a new production process. For coloured modules please ask about minimum quantities and delivery times.
Using the roof pitch it is possible to extend and retract the slats on guide rails in a safe and almost silent way. Thus, there is also no need for a sensitive counter draw system. Special sizes of up to 6.4m (= slat length) are currently available at a theoretical winding length of 12m.

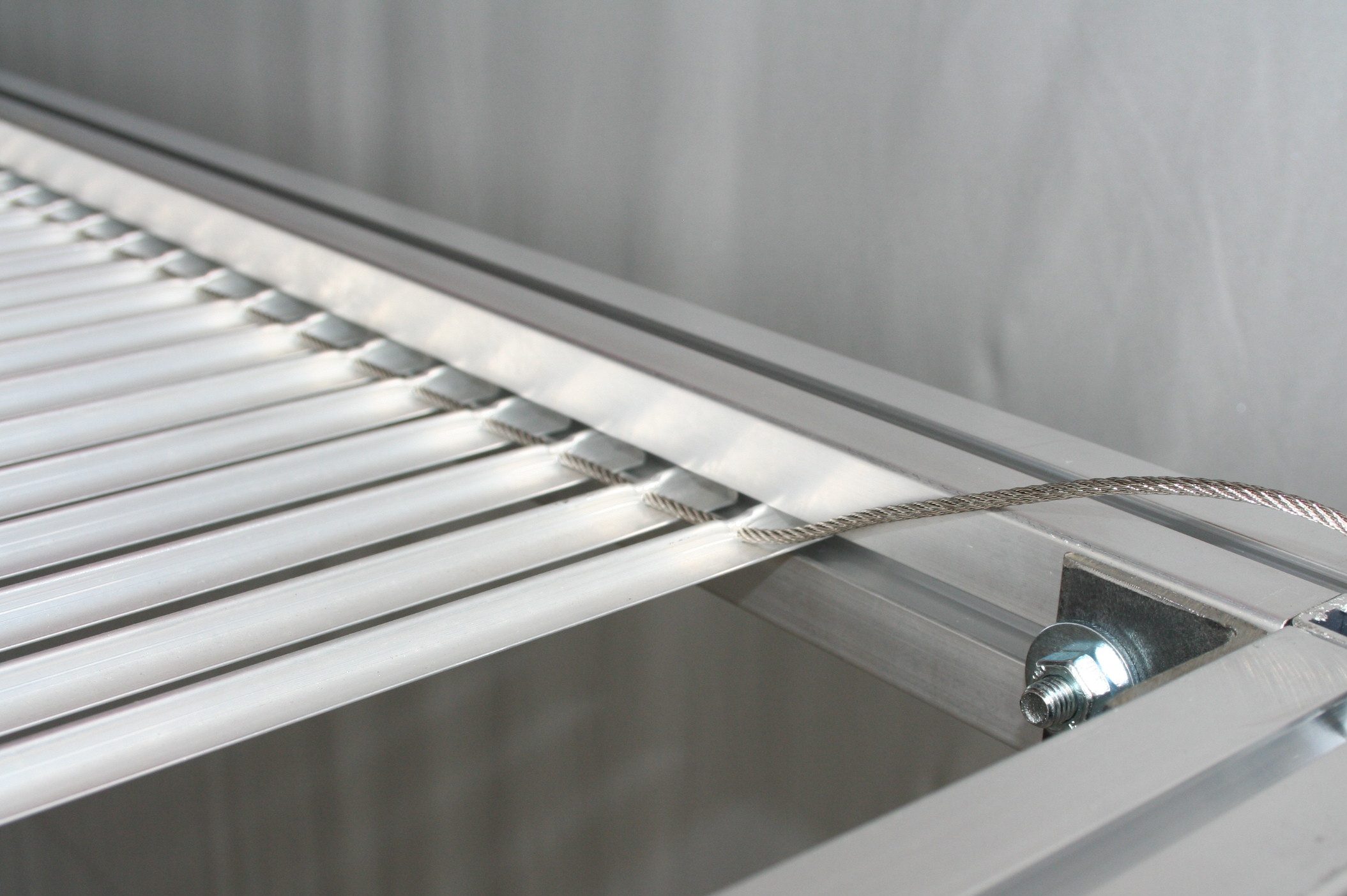

Approx. 20mm from the edge and about every 50-70cm a stainless steel wire of Ø3mm are standard dimensions and guarantee a perfect function. Depending on the customers’ ideas it is possible to have closer wire distances for maximum stability.
WIDE RANGE OF APPLICATIONS

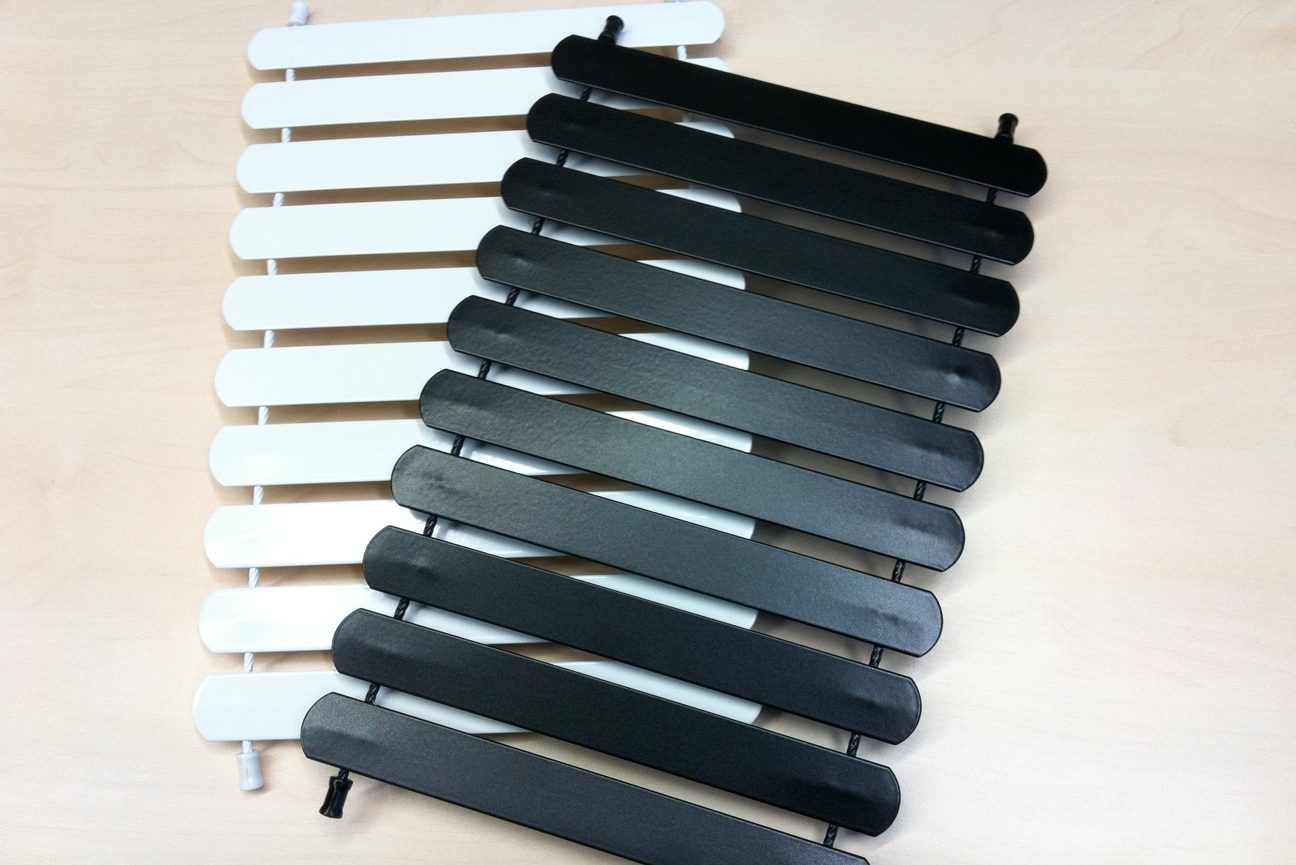

In addition to the standard application as a roll-up sun protection for pitched roof areas or vertical mounting our HS archi-line can be used as a stationary and decorative fence element or as a room partition. The optional powder coating in any colour conveys an elegant touch, while a simple installation with integrated fixing loops, sleeves or rope tensioners is possible.
